Standard Features

   Power In and Power Out

   Battery Cables With Terminals

   Circuit Breaker

   Handsaver

   On The Motor Switching

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps

0

21.0 (6.7)

25

      500 (227)

15.5 (3.8)

60

   1,000 (454)

12.0 (2.7)

92

   Specifications

   Rated Line Pull (Single Line)

1,000 lb. (454 kg)

   Motor

1.1 hp

   Gearing

Differential Planetary

   Gear Ratio

123:1

   Braking Action

Dynamic

   Wire Rope

5/32" x 25' (3.9mm x 7.6m)

   Dimensions

12"l. x 5.38"d. x 5.69"h.

(305mm l. x 137mm d. x 145mm h.)

   Drum Diameter

1.63" (32mm)

   Drum Length

2.60" (66mm)

   Weight

15 lb. (7 kg)

   Recommended Accessories

   Dash Mount Switch Plate

1501B

   Pulley Block

2227A

   Winch Cover

1504

   Roller Fairlead

1560A

   Accessory Kit

1554

   Trailing Wiring Harness

1520

   Handheld Remote Switch Kit 15'

1515A

   Mounting Systems (See application chart)

   Replacement Parts

   Wire Rope

   5/32" x 25' (3.9mm x 7.6m)

1535

   Switch

1519A

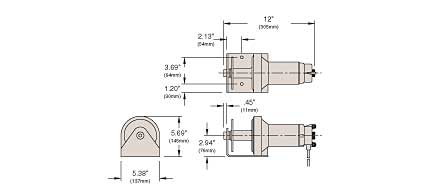

   Dimensions
