X6CD 6,000 lb./2,722 kg
|
Power In and Power Out
|
|
|
Freespooling
|
|
|
Battery Cables With Terminals
|
|
|
Circuit Breakers
|
|
|
Automatic In-The-Drum Braking
|
|
|
Remote Mountable Solenoid Station
|
|
|
Prewired with 15' Handheld Remote Switch
|
|
|
Handsave
|
|
|
Performance 12VDC (1st layer on drum)
|
|
Line Pull
lbs./kg
|
Line Speed
FPM (m/m)
|
Motor
Amps 12V
|
|
0
|
17.5 (5.3)
|
30
|
|
1,000 (454)
|
14.8 (4.5)
|
81
|
|
2,000 (907)
|
11.6 (3.5)
|
134
|
|
4,000 (1,814)
|
6.1 (1.9)
|
250
|
|
6,000 (2,722)
|
2.5 (0.8)
|
400
|
|
Rated Line Pull (Single Line)
|
6,000 lb. (2,722 kg)
|
|
Motor
|
3.4 hp
|
|
Gearing
|
Differential Planetary
|
|
Gear Ratio
|
253:1
|
|
Freespooling Clutch
|
1/4 Turn Activation
|
|
Braking Action
|
Automatic In-The-Drum
|
|
Wire Rope
|
5/16" x 100' (7.9mm x 30.5m)
|
|

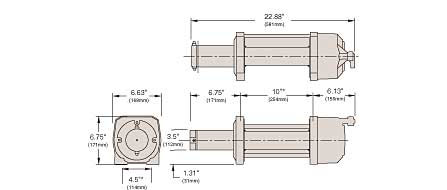

Dimensions
|
22.88" l. x 6.75" d. x 6.63" h.
|
|
|
(581mm l. x 171mm d. x 168mm h.)
|
|
Drum Diameter
|
2.5" (64mm)
|
|
Drum Length
|
9" (229mm)
|
|
Weight
|
72 lb. (33 kg)
|
|
Pulley Block
|
2212A
|
|
Winch Cover
|
1566
|
|
Accessory Kit
|
2224
|
|
Wire Rope
|
|
|
5/16" x 100' (7.9mm x 30.5m)
|
1580
|
|
Handheld Remote Switch 15'
|
2272
|
|
Handheld Remote Switch 30'
|
2274
|
|
Clevis Hook with Latch
|
90-20435
|
|
