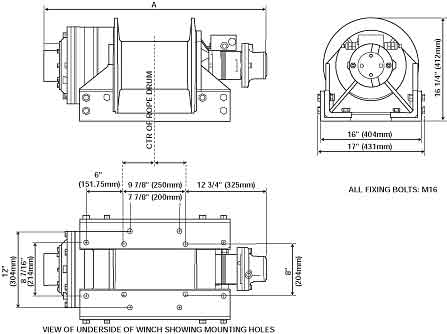

H20P/H25P/H30P 20,000 –30,000 lb. / 9,080–13,610 kg
|
Robust construction engineered to meet J706 standards
|
|
Heavy duty, high efficiency 2 stage planetary gearbox giving optimum reliability
|
|
Multi-disc type brake, spring applied, hydraulic release, full load holding
|
|
Rugged, high torque, low speed motor unit of proven reliability
|
|
Spring applied, pneumatic freespooling, released for rapid rope pay-out
|
|
Heavy duty cast drum, running on substantial roller bearings
|
|
Load Control Valve fitted as standard to ensure complete load control
|
|
H20P
|
|
|
Maximum Oil Pressure
|
2,500 psi (172 bar)
|
|
Maximum Oil Flow
|
6/20gpm (23/75 l/min.)
|
|
Line Pull (Second Layer)
|
18,891 lbs. (8,569kg)
|
|
Line Pull (Third Layer)
|
15,294 lbs. (6,937kg)
|
|
Line Pull (Fourth Layer)
|
13,689 lbs. (6,209kg)
|
|
H25P
|
|
|
Maximum Oil Pressure
|
2,500 psi (172 bar)
|
|
Maximum Oil Flow
|
6/20gpm (23/75 l/min.)
|
|
Line Pull (Second Layer)
|
23,551 lbs. (10,682kg)
|
|
Line Pull (Third Layer)
|
19,118 lbs. (8,672kg)
|
|
Line Pull (Fourth Layer)
|
17,105 lbs. (7,759kg)
|
|
H30P
|
|
|
Maximum Oil Pressure
|
2,500 psi (172 bar)
|
|
Maximum Oil Flow
|
6/20gpm (23/75 l/min.)
|
|
Line Pull (Second Layer)
|
28,336 lbs. (12,853kg)
|
|
Line Pull (Third Layer)
|
22,941 lbs. (10,406kg)
|
|
Line Pull (Fourth Layer)
|
20,534 lbs. (9,314kg)
|
|
H20P
|
|
|
Rated Line Pull (Bottom Layer)
|
20,000 lb. (9,080 kg)
|
|
Line Speed, Bottom Layer, No Load
|
34'/min. (10.3m/min.)
|
|
Recommended Wire Rope Diameter
|
5/8" (16mm)
|
|
Maximum Rope Length
|
250' of 5/8" or 160' of 3/4"
|
|
Drum Diameter
|
7.5" (190.5mm)
|
|
Weight (Excluding Wire Rope)
|
436 lbs. (198 kg)
|
|
H25P
|
|
|
Rated Line Pull (Bottom Layer)
|
25,000 lb. (11,340 kg)
|
|
Line Speed, Bottom Layer, No Load
|
28'/min. (8.5m/min.)
|
|
Recommended Wire Rope Diameter
|
11/16" (17.4mm)
|
|
Maximum Rope Length
|
250' of 5/8" or 160' of 3/4"
|
|
Drum Diameter
|
7.5" (190.5mm)
|
|
Weight (Excluding Wire Rope)
|
436 lbs. (198 kg)
|
|
H30P
|
|
|
Rated Line Pull (Bottom Layer)
|
30,000 lb. (13,610 kg)
|
|
Line Speed, Bottom Layer, No Load
|
23'/min. (7m/min.)
|
|
Recommended Wire Rope Diameter
|
3/4" (20mm)
|
|
Maximum Rope Length
|
250' of 5/8" or 160' of 3/4"
|
|
Drum Diameter
|
7.5" (190.5mm)
|
|
Weight (Excluding Wire Rope)
|
436 lbs. (198 kg)
|
|
H20P Winch, Air Clutch
|
5440B
|
|
H25P Winch, Air Clutch
|
5450B
|
|
H30P Winch, Air Clutch
|
5460B
|
|
