H10/H12/H14W 10,000, 12,000 and 14,000 lb. / 4,535–6,350 kg
|
Compact size and robust construction
|
|
Heavy duty, steel centered aluminum bronze wormwheel and casehardened precision
ground worm for optimum reliability.
|
|
Irreversible Worm Set, for substantial reliable braking action
|
|
Rugged, high torque motor unit of proven reliability
|
|
Manual released for rapid rope pay-out
|
|
Heavy duty fabricated steel drum assembly mounted on maintenance-free plain bearings
|
|

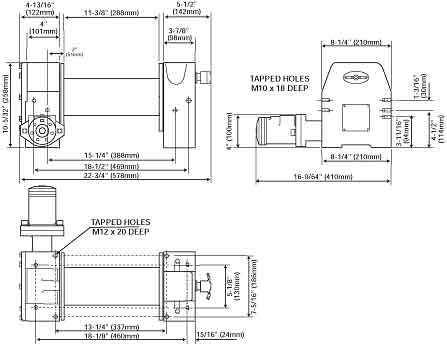

H10W
|
|
|
Oil Pressure
|
1,800 psi (155 bar)
|
|
Recommended Oil Flow
|
15gpm (57 l/min.)
|
|
Line Pull (Second Layer)
|
8,170 lbs. (3,706kg)
|
|
Line Pull (Third Layer)
|
6,912 lbs. (3,135kg)
|
|
Line Pull (Fourth Layer)
|
5,987 lbs. (2,716kg)
|
|
H12W
|
|
|
Oil Pressure
|
1,800 psi (155 bar)
|
|
Recommended Oil Flow
|
15gpm (57 l/min.)
|
|
Line Pull (Second Layer)
|
9,804 lbs. (4,447kg)
|
|
Line Pull (Third Layer)
|
8,295 lbs. (3,762kg)
|
|
Line Pull (Fourth Layer)
|
7,185 lbs. (3,259kg)
|
|
H14W
|
|
|
Oil Pressure
|
1,800 psi (155 bar)
|
|
Recommended Oil Flow
|
15gpm (57 l/min.)
|
|
Line Pull (Second Layer)
|
11,200 lbs. (5,080kg)
|
|
Line Pull (Third Layer)
|
9,334 lbs. (4,234kg)
|
|
Line Pull (Fourth Layer)
|
8,000 lbs. (3,629kg)
|
|
H10W
|
|
|
Rated Line Pull (Bottom Layer)
|
10,000 lb. (4,535 kg)
|
|
Line Speed, Bottom Layer, No Load
|
16'/min. (4.8m/min.)
|
|
Recommended Wire Rope Diameter
|
7/16" (11mm)
|
|
Recommended Wire Rope Length
|
129' (39m)
|
|
Drum Diameter
|
3.5" (89mm)
|
|
Weight (Excluding Wire Rope)
|
112 lbs. (51 kg)
|
|
H12W
|
|
|
Rated Line Pull (Bottom Layer)
|
12,000 lb. (5,443 kg)
|
|
Line Speed, Bottom Layer, No Load
|
12'/min. (3.5m/min.)
|
|
Recommended Wire Rope Diameter
|
7/16" (11mm)
|
|
Recommended Wire Rope Length
|
129' (39m)
|
|
Drum Diameter
|
3.5" (89mm)
|
|
Weight (Excluding Wire Rope)
|
112 lbs. (51 kg)
|
|
H14W
|
|
|
Rated Line Pull (Bottom Layer)
|
14,000 lb. (6,350 kg)
|
|
Line Speed, Bottom Layer, No Load
|
10'/min. (3.1m/min.)
|
|
Recommended Wire Rope Diameter
|
1/2" (12.7mm)
|
|
Recommended Wire Rope Length
|
118' (36m)
|
|
Drum Diameter
|
3.5" (89mm)
|
|
Weight (Excluding Wire Rope)
|
112 lbs. (51 kg)
|
|
H10W Winch only
|
7085A
|
|
H12W Winch only
|
7086A
|
|
H14W Winch only
|
7080A
|
|
Roller Fairlead
|
5620A
|
|
Cable Tensioner
|
5609
|
|
Pulley Block, 20,000 lb. (9,100kg)
|
5624
|
|
