GP2300 2,300 lb./1,043 kg

GP2300

   Standard Features

   Powers Load IN and OUT

   Mechanical and Dynamic Brake

   Full-metal Planetary Gear-train

   Freespooling Clutch for Fast Wire Rope Payout

   High Efficiency Low Amp Draw Motor

   Commercial Grade Contactor Pre-mounted and Sealed Against the Elements

   Circuit Breaker Protected

   Durable Handheld Remote Switch on 15' Lead

   Cable Tension Plate

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

0

15.5 (4.7)

    8

         500 (227)

12.5 (3.8)

  30

      1,000 (454)

10.0 (3.0)

  60

      1,500 (680)

  6.8 (2.1)

  90

      1,800 (816)

  6.0 (1.8)

108

   2,300 (1,043)

  1.6 (0.5)

140

   Specifications

   Rated Line Pull (Single Line)

2,300 lb. (1,043 kg)

   Motor

0.71 hp (12V DC)

   Gearing

Differential Planetary

   Gear Ratio

153:1

   Freespooling Clutch

Pull and Turn

   Braking

Mechanical and Dynamic

   Wire Rope

5/32" x 60' (3.9mm x 18.2m) with Latched Hook

   Dimensions

12.5"l. x 3.9"d. x 4.1"h.

(317.5mm l. x 100mm d. x 104mm h.)

   Drum Diameter

1.25" (31.8mm)

   Drum Length

2.9" (73.7mm)

   Weight

14 lb. (6.4 kg)

   Switching Method

15' Handheld Remote

   Switching Mechanism

Commercial Grade Contactor

   Roller Fairlead

Standard

   Pulley Block

Standard

   Color-Coded Wiring

Yes

   Wireless Remote Control

Optional

   Recommended Accessories

   Trailer Wiring Kit

1520

   Accessory Kit

1554

   Replacement Parts

   Wire Rope


   5/32" x 60' (3.9mm x 18.2m)

1535C

   Handheld Remote Switch 15' (4.5m)

2272

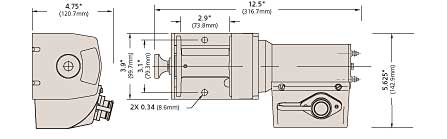

   Dimensions
