EP 9.0 9,000 lb./4,082 kg
|
Power In and Power Out
|
|
Automatic Load Holding Brake
|
|
Quiet, Efficient, Full Metal 3-Stage Planetary Gear Box
|
|
Freespooling Clutch for Fast Wire Rope Payout
|
|
Efficient 4.6 hp Series Wound Motor
|
|
Heavy Duty Sealed Contactor
|
|
Durable Handheld Remote Switch on 15' Lead
|
|
Heavy Duty Roller Fairlead -- Roller fairlead does not attach directly to the winch.
|
|
Pulley Block
|
|
Performance 12VDC (1st layer on drum)
|
|
Line Pull
lbs./kg
|
Line Speed
FPM (m/m)
|
Motor
Amps 12V
|
Motor
Amps 24V
|
|
0
|
47.1 (14.3)
|
33
|
15
|
|
2,000 (907)
|
14 (4.6)
|
110
|
55
|
|
4,000 (1,814)
|
11 (3.4)
|
200
|
100
|
|
6,000 (2,722)
|
9 (2.7)
|
230
|
115
|
|
8,000 (3,629)
|
7.5 (2.3)
|
260
|
130
|
|
9,000 (4,082)
|
6.4 (2.0)
|
350
|
210
|
|
Rated Line Pull (Single Line)
|
9,000 lb. (4,082 kg)
|
|
Motor
|
4.6 hp, 90° Rotatable, series wound
|
|
Gearing
|
3 Stage Planetary
|
|
Gear Ratio
|
156:1
|
|
Freespooling Clutch
|
Lift and turn
|
|
Braking
|
Automatic 100% Load Holding
|
|
Wire Rope
|
21/64" x 100' (8.3mm x 30.5m)
|
|

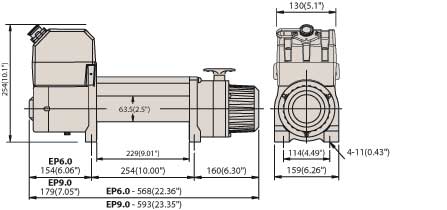

Dimensions
|
23.35" l. x 6.26" d. x 7.13" h.
|
|
|
(593mm l. x 159mm d. x 181mm h.)
|
|
Drum Diameter
|
2.5" (64mm)
|
|
Drum Length
|
9" (229mm)
|
|
Weight
|
108 lb. (49.1 kg)
|
|
Switching Method
|
15' Rubber Handheld Remote
|
|
Switching Mechanism
|
Heavy Duty Sealed Contactor
|
|
Roller Fairlead
|
Standard
|
|
Pulley Block
|
Standard
|
|
Color-Coded Wiring
|
Standard
|
|
Wireless Remote Control
|
Optional
|
|
Wire Rope 21/64" x 100' (8.3mm x 30.5m)
|
90-20506
|
|
Handheld Remote Switch 15' (4.5m)
|
2272
|
|
