EP16.5 16,500 lb./7,484 kg

EP16.5

   Standard Features

   Power In and Power Out

   Automatic Load Holding Brake

   Quiet, Efficient, Full Metal 3-Stage Planetary Gear Box

   Freespooling Clutch for Fast Wire Rope Payout

   Efficient 5.6 hp Series Wound Motor

   Heavy Duty Sealed Contactor

   Durable Handheld Remote Switch on 15' Lead

   Heavy Duty Roller Fairlead-- Roller fairlead does not attach directly to the winch.

   First and Last 10' of Wire Rope Dyed for Beginning /End Warning

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

Motor
Amps 24V

          0

28.4 (8.7)

  63

  49

     6,000 (2,722)

  6.3 (1.9)

190

172

   10,000 (4,536)

  4.0 (1.2)

255

260

   16,500 (7,484)

  1.9 (0.6)

370

425

   Specifications

   Rated Line Pull (Single Line)

16,500 lb. (7,484 kg)

   Motor

5.6 hp, 90° Rotatable, series wound  12V

3.6 hp, 90° Rotatable, series wound  24V

   Gearing

3 Stage Planetary

   Gear Ratio

315:1

   Freespooling Clutch

Lift and turn

   Braking

Automatic 100% Load Holding

   Wire Rope

7/16" x 90' (11mm x 27m)

   Dimensions

26.50" l. x 8.50" d. x 11.20" h.

(573mm l. x 215.9mm d. x 284.5mm h.)

   Drum Diameter

3.5" (88.9mm)

   Drum Length

8" (203mm)

   Weight

150 lb. (68.5 kg)

   Switching Method

15' (4.5m) Rubber Handheld Remote

   Switching Mechanism

Heavy Duty Sealed Contactor

   Roller Fairlead

Standard

   Pulley Block

Optional P/N/ 90-25101

   Color-Coded Wiring

Standard

   Wireless Remote Control

Optional P/N 06702

   Mounting Plate

Optional P/N 2302287

   Recommended Accessories

   Pulley Block

90-25101

   Wireless Remote

06702

   Mount Plate

2302287

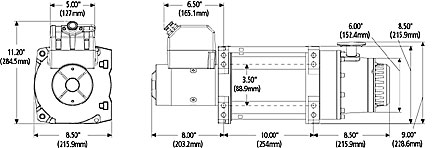

   Dimensions
