S3000 3,000 lb./1,361 kg
Power Load IN and OUT
|
Mechanical and Dynamic Brake
|
Full-metal Gear-train
|
Freespooling Clutch for Fast Wire Rope Payout
|
High Efficiency Low Amp Draw Motor
|
Commercial Grade Integrally Mounted Sealed Contactor
|
Circuit Breaker Protected
|
Durable Handheld Remote Switch on 30' Lead
|
Roller Fairlead
|
Performance 12VDC (1st layer on drum)
|
Line Pull
lbs./kg
|
Line Speed
FPM (m/m)
|
Motor
Amps 12V
|
0
|
27.7 (8.4)
|
15
|
1,000 (454)
|
12.5 (3.8)
|
70
|
2,000 (907)
|
9.0 (2.7)
|
117
|
2,500 (1,134)
|
7.5 (2.3)
|
155
|
3,000 (1,361)
|
4.5 (1.4)
|
220
|
Rated Line Pull (Single Line)
|
3,000 lb. (1,361 kg)
|
Motor
|
1.3 hp (12V or 24V DC)
|
Gearing
|
Differential Planetary
|
Gear Ratio
|
159:1
|
Freespooling Clutch
|
Lever action
|
Braking
|
Mechanical and Dynamic
|
Wire Rope
|
3/16" x 60' (4.8mm x 18.2m) with Latched Hook
|

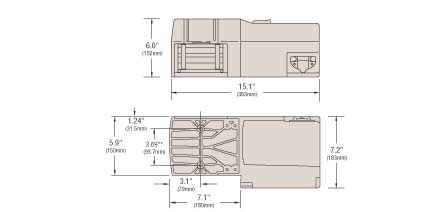

Dimensions
|
15.1"l. x 8.7"d. x 6.0"h.
|
|
(383mm l. x 221mm d. x 152mm h.)
|
Drum Diameter
|
1.625" (41.3mm)
|
Drum Length
|
3" (76.2mm)
|
Weight
|
38 lb. (17.3 kg)
|
Switching Method
|
30' Rubber Handheld Remote
|
Switching Mechanism
|
Commercial Grade Contactor
|
Roller Fairlead
|
Standard
|
Wireless Remote Control
|
Optional
|
Accessory Kit
|
1554
|
Pulley Block
|
2229A
|
Mounting Systems (See application chart)
|
|
Wire Rope
|
|
3/16" x 60' (4.8mm x 18.2m)
|
1511C
|
Handheld Remote Switch 30' (9.1m)
|
2774
|
|
