X1 2,000 lb./907 kg
|
Power In and Power Out
|
|
Battery Cables With Terminals
|
|
Circuit Breakers
|
|
On The Motor Switching
|
|
Handsaver
|
|
Performance 12VDC (1st layer on drum)
|
|
Line Pull
lbs./kg
|
Line Speed
FPM (m/m)
|
Motor
Amps
|
|
0
|
25.5 (8.2)
|
30
|
|
500 (227)
|
22.0 (5.3)
|
74
|
|
1,000 (454)
|
15.5 (4.7)
|
116
|
|
1,500 (680)
|
12.5 (3.7)
|
155
|
|
2,000 (907)
|
7.0 (3.7)
|
200
|
|
Rated Line Pull (Single Line)
|
2,000 lb. (907 kg)
|
|
Motor
|
1.3 hp
|
|
Gearing
|
Differential Planetary
|
|
Gear Ratio
|
123:1
|
|
Braking Action
|
Dynamic
|
|
Wire Rope
|
3/16" x 25' (4.8mm x 7.6m)
|
|

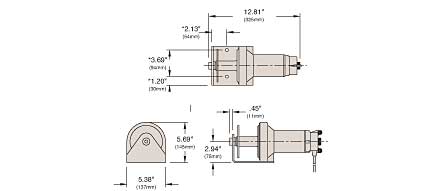

Dimensions
|
12.81"l. x 5.38"d. x 5.69"h.
|
|
|
(325mm l. x 137mm d. x 146mm h.)
|
|
Drum Diameter
|
1.5" (38mm)
|
|
Drum Length
|
2.6" (66mm)
|
|
Weight
|
16 lb. (7 kg)
|
|
Handheld Remote Switch Kit 15'
|
1515A
|
|
Pulley Block
|
2227A
|
|
Winch Cover
|
1504
|
|
Roller Fairlead
|
1560A
|
|
Accessory Kit
|
1554
|
|
Trailing Wiring Harness
|
1520
|
|
Remote Dash Mount Switch Plate
|
1501B
|
|
Mounting Systems (See application chart)
|
|
|
Wire Rope
|
|
|
3/16" x 25' (4.8mm x 7.6m)
|
1511
|
|
3/16" x 50' (4.8mm x 15.2m)
|
1511A
|
|
Switch
|
1519A
|
|
