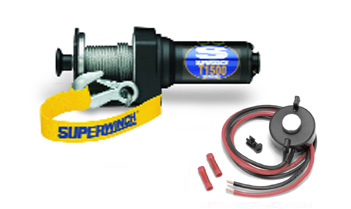

T1500 1,500 lb./680 kg

T1500

   Standard Features

   Powers Load IN and OUT

   Dynamic Brake

   Full-metal Planetary Gear-train

   Freespooling Clutch for Fast Wire Rope Payout

   High Efficiency Remote Mounted Draw Motor

   Convenient Remote Mounted Switch

   Circuit Breaker Protected

   25' Galvanized Wire Rope with Thimble End and Latched Hook

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps

0

14.5 (4.4)

  8

      500 (227)

11.3 (3.4)

30

   1,000 (454)

  8.5 (2.6)

60

   1,500 (680)

  5.2 (1.6)

90

   Specifications

   Rated Line Pull (Single Line)

1,500 lb. (680 kg)

   Motor

0.71 hp

   Gearing

Differential Planetary

   Gear Ratio

153:1

   Freespooling Clutch

Pull and Turn

   Braking Action

Dynamic

   Wire Rope

5/32" x 25' (3.9mm x 7.6m) with Latched Hook

   Dimensions

12.5"l. x 3.9"d. x 4.1"h.

(317.5mm l. x 100mm d. x 104mm h.)

   Drum Diameter

1.25" (31.8mm)

   Drum Length

2.9" (73.6mm)

   Weight

12 lb. (5.4kg)

   Switching Method

Rotary Switching

   Roller Fairlead

Optional

   Color-Coded Wiring

Yes

   Wireless Remote Control

Optional

   Recommended Accessories

   Pulley Block

2227A

   Accessory Kit

1554

   Roller Fairlead

1560C

   Replacement Parts

   Wire Rope


   5/32" x 25' (3.9mm x 7.6m)

1535

   Wireless Remote

06202

   Dimensions
