H9W 9,000 lb./4,080 kg

H9W

   Standard Features

   Compact size and robust construction

   Heavy duty, steel centered aluminum bronze wormwheel and casehardened precision
   ground worm for optimum reliability.

   Irreversible Worm Set, for substantial reliable braking action

   Rugged, high torque motor unit of proven reliability

   Manual released for rapid rope pay-out

  Heavy duty fabricated steel drum assembly mounted on maintenance-free plain bearings

   Performance

   Oil Pressure

1,800 psi

   Recommended Oil Flow

12gpm (45 l/min.)

   Line Pull (Second Layer)

7,364 lbs. (3,340kg)

   Line Pull (Third Layer)

6,230 lbs. (2,826kg)

   Specifications

   Rated Line Pull (Bottom Layer)

9,000 lb. (4,080 kg)

   Line Speed, Bottom Layer, No Load

16'/min. (4.8m/min.)

   Wire Rope Diameter

3/8" (10mm)

   Recommended Maximum Wire Rope
   Length, Std. Drum

100' (30m)

   Rope Drum Diameter

3" (76mm)

   Weight (Excluding Wire Rope)

63 lbs. (28.5 kg)

   Winch

   H9W Winch only

8588A

   Optional Accessories

   Roller Fairlead

8584

   Cable Tensioner

5605

   Pulley Block, 20,000 lb. (9,100kg)

7750A

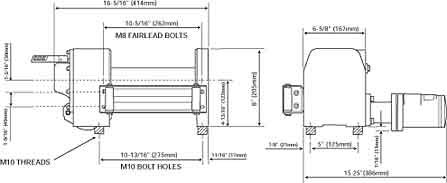

   Dimensions
