H11P/H13P/H15P 11,000 –15,000 lb. / 5,000–6,800 kg
|
Robust construction engineered to meet J706 standards.
|
|
High efficiency 2 stage planetary gearbox giving optimum reliability
Integral, automatic, fail safe brake
|
|
Integral brake, spring applied, hydraulic released, full load holding
|
|
Rugged, high torque, low speed motor unit of proven reliability
|
|
Pneumatic freespooling for rapid rope pay-out
|
|
Heavy duty steel drum, mounted on maintenance-free plain bearings
|
|
H11P
|
|
Oil Pressure
|
2,000 psi (137.89 bar)
|
|
Oil Flow
|
15gpm (57 l/min.)
|
|
Line Pull (Second Layer)
|
9,185 lbs. (4,166kg)
|
|
Line Pull (Third Layer)
|
7,887 lbs. (3,577kg)
|
|
Line Pull (Fourth Layer)
|
6,908 lbs. (3,133kg)
|
|
H13P
|
|
|
Oil Pressure
|
2,000 psi (137.89 bar)
|
|
Oil Flow
|
15gpm (57 l/min.)
|
|
Line Pull (Second Layer)
|
10,855 lbs. (4,923kg)
|
|
Line Pull (Third Layer)
|
9,321 lbs. (4,228kg)
|
|
Line Pull (Fourth Layer)
|
8,164 lbs. (3,703kg)
|
|
H15P
|
|
|
Oil Pressure
|
2,000 psi (137.89 bar)
|
|
Oil Flow
|
15gpm (57 l/min.)
|
|
Line Pull (Second Layer)
|
12,270 lbs. (5,565kg)
|
|
Line Pull (Third Layer)
|
10,380 lbs. (4,708kg)
|
|
Line Pull (Fourth Layer)
|
9,000 lbs. (4,082kg)
|
|
H11P
|
|
Rated Line Pull (Bottom Layer)
|
11,000 lb. (5,000 kg)
|
|
Line Speed, Bottom Layer, No Load
|
38'/min. (11.58m/min.)
|
|
Recommended Wire Rope Diameter
|
7/16" (11mm)
|
|
Short Drum Wire Rope Length
|
214' (65m)
|
|
Long Drum Wire Rope Length
|
257' (78m)
|
|
Drum Diameter
|
4" (102mm)
|
|
Weight (Excluding Wire Rope)
|
154 lbs. (70 kg)
|
|
H13P
|
|
|
Rated Line Pull (Bottom Layer)
|
13,000 lb. (6,000 kg)
|
|
Line Speed, Bottom Layer, No Load
|
30'/min. (9.14m/min.)
|
|
Recommended Wire Rope Diameter
|
7/16" (11mm)
|
|
Short Drum Wire Rope Length
|
214' (65m)
|
|
Long Drum Wire Rope Length
|
257' (78m)
|
|
Drum Diameter
|
4" (102mm)
|
|
Weight (Excluding Wire Rope)
|
154 lbs. (70 kg)
|
|
H15P
|
|
|
Rated Line Pull (Bottom Layer)
|
15,000 lb. (6,800 kg)
|
|
Line Speed, Bottom Layer, No Load
|
27'/min. (8.22m/min.)
|
|
Recommended Wire Rope Diameter
|
1/2" (12.7mm)
|
|
Short Drum Wire Rope Length
|
153' (47m)
|
|
Long Drum Wire Rope Length
|
184' (56m)
|
|
Drum Diameter
|
4" (102mm)
|
|
Weight (Excluding Wire Rope)
|
154 lbs. (70 kg)
|
|
H11P Manual Freespool (Short Drum)
|
5364
|
|
H11P Manual Freespool (Long Drum)
|
5366
|
|
H11P Pneumatic Freespool (Short Drum)
|
5365
|
|
H11P Pneumatic Freespool (Long Drum)
|
5367
|
|
H13P Manual Freespool (Short Drum)
|
5370
|
|
H13P Manual Freespool (Long Drum)
|
5372
|
|
H13P Pneumatic Freespool (Short Drum)
|
5371
|
|
H13P Pneumatic Freespool (Long Drum)
|
5373
|
|
H15P Manual Freespool (Short Drum)
|
5374
|
|
H15P Manual Freespool (Long Drum)
|
5376
|
|
H15P Pneumatic Freespool (Short Drum)
|
5375
|
|
H15P Pneumatic Freespool (Long Drum)
|
5377
|
|
Roller Fairlead (Short Drum)
|
5610A
|
|
Roller Fairlead (Long Drum)
|
5620A
|
|
Cable Tensioner(Short Drum)
|
5637A
|
|
Cable Tensioner (Long Drum)
|
5670A
|
|
|

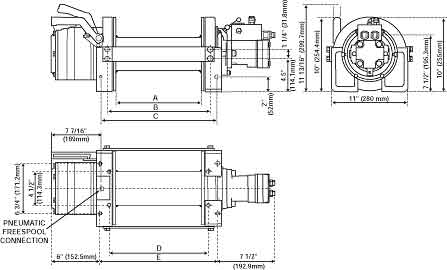

Short Drum
|
Long Drum
|
|
A
|
10" (254mm)
|
11-7/16" (290mm)
|
|
B
|
12-1/2" (317mm)
|
13-7/9" (350mm)
|
|
C
|
14-1/8" (359mm)
|
15-1/2" (394mm)
|
|
D
|
12" (304.8mm)
|
13-5/16" (338.1mm)
|
|
E
|
14-1/2" (368.3mm)
|
15-7/8" (403.2mm)
|
|
F
|
13-7/8" (352.4mm)
|
14-1/2" (368.3mm)
|
|
