ATV3000 3,000 lb./1,361 kg
Powers Load IN and OUT
|
Mechanical and Dynamic Brake
|
Full-metal Planetary Gear-train
|
Freespooling Clutch for Fast Wire Rope Payout
|
High Efficiency Low Amp Draw Motor
|
Heavy Duty Switching Relay Sealed to Protect Against the Elements
|
Convenient Handlebar Mounted Low Amp Roggle Switch
|
Circuit Breaker Protected
|
Roller Fairlead
|
Performance 12VDC (1st layer on drum)
|
Line Pull
lbs./kg
|
Line Speed
FPM (m/m)
|
Motor
Amps 12V
|
0
|
26.9 (8.2)
|
15
|
500 (227)
|
13.0 (3.9)
|
40
|
1,000 (454)
|
11.5 (3.5)
|
60
|
1,500 (680)
|
9.0 (2.7)
|
100
|
1,800 (816)
|
7.5 (2.3)
|
115
|
2,300 (1043)
|
5.4 (1.6)
|
160
|
2,500 (1134)
|
4.0 (1.2)
|
180
|
3,000 (1361)
|
2.0 (0.6)
|
220
|
Rated Line Pull(Single Line)
|
3,000 lb. (1361 kg)
|
Motor
|
1.1 hp (12V DC)
|
Gearing
|
Dfferential Planetary
|
Gear Ratio
|
153:1
|
Freespooling Clutch
|
Pull and Turn
|
Braking
|
Mechanical and Dynamic
|
Wire Rope
|
3/16" x 50' (4.8mm x 15.2m) with Latched Hook
|

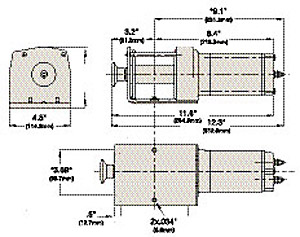

Dimensions
|
12.3"l. x 4.36"d. x 4.5"h.
|
|
(322.6mm l. x 110.7mm d. x 114.3mm h.)
|
Drum Diameter
|
1.25" (31.8mm)
|
Drum Length
|
2.9" (73.7mm)
|
Weight
|
15 lb. (6.8 kg)
|
Switching Method
|
Handlebar Mounted Roggle
|
Switching Mechanism
|
Heavy Duty Sealed Switching Relay
|
Roller Fairlead
|
Standard
|
Color-Coded Wiring
|
Yes
|
Wireless Remote Control
|
Optional
|
Accessory Kit
|
1554
|
Wireless Remote System
|
06212
|
Wire Rope
|
|
3/16" x 50' (4.8mm x 15.2m)
|
1571A
|
Roggle Switch
|
87-14422
|
Pulley Block
|
2227A
|
|
